鎧裝迷你光纜I型
Armored MiNi Fo cable
產品描述Description
鎧裝迷你光纜由多條12芯干式鎧裝光纜層絞而成，每根子纜可單獨使用。這種光纜具有非常優良的機械特性，外徑小，強度高，節約空間，易于布線及后續加工，是通信領域很好的傳輸媒介。產品在廣播電視系統、樓宇智能控制、電力控制系統、交通通訊系統和局域網中廣泛應用。

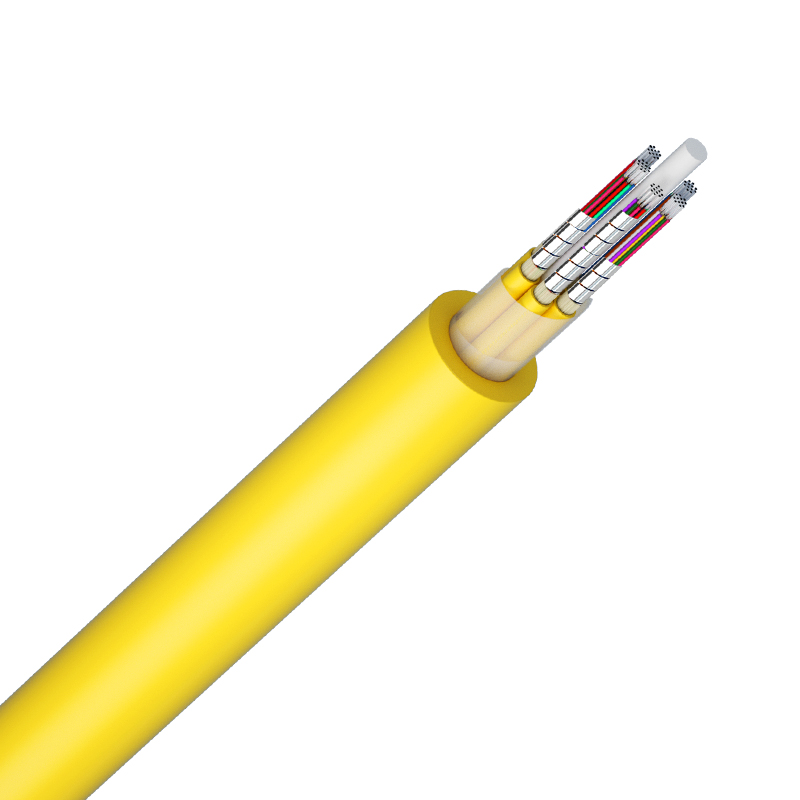

Armored mini fiber optic cables are made of several stranded sub-armored cable which is with 4~12 fibers. Each cable can be used separately. This kind of cable has very good mechanical characteristics, small outside diameter, high strength, saving space, easy wiring and follow-up processing, is a good transmission meldium in the field of communication. The products are widely used in broadcasting and television system, building intelligent control, power control system, traffic communication system and local area network.
產品特點Features
◆鎧裝保護，具有優良的機械性能
Protected by flexible armored SUS tube, which have very goodmechanical performances.
◆微小外徑，節約布線空間，易于施工；
Small diameter,save space and easy to deploy;
◆阻燃PVC/LSZH/PE等外護套可選，符合UL，RoHS等；
Outer jacket complies with UL,RoHS;
◆多分支結構，每根子纜可單獨使用；
Multi-cores break-out structure, every branch can be a separated cable;
推薦用途Application
◆加工鎧裝多芯跳線、尾纜；
Process to multi-cores armored patch cord;
◆室內外沿墻、頂、夾層和導管連接的直接布放光纜；
Cabling on wall, ceil, tube, case, etc;
◆室內水平布線、建筑物內垂直布線；
Cabling on horizontal built-in wall and vertical buildings,etc;

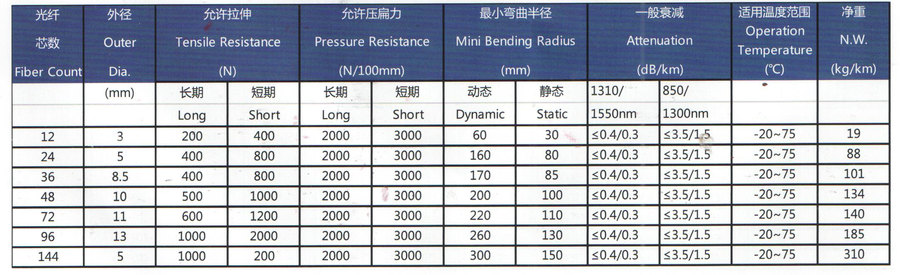

主要參數Main Parameters
