鎧裝迷你光纜II型

鎧裝迷你光纜II型

ARMORED MINI FOCABLE

產品描述Description

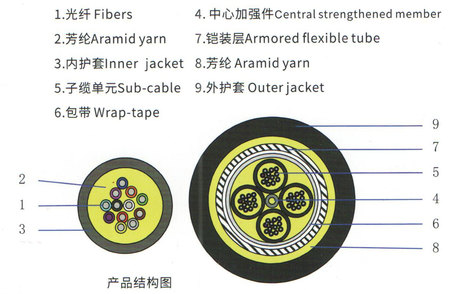

鎧裝迷你光纜由多條12芯干式子纜單元、中心加強件，包帶，鎧裝層，加強件，外護套等組成。這種光纜具有非常優良的機械特性，外徑小，強度高，節約空間，易于布線及后續加工，是通信領域很好的傳輸媒介。產品在廣播電視系統、樓宇智能控制、電力控制系統、交通通訊系統和局域網中廣泛應用。

Armored mini fiber optic cables are made of several stranded slubcable which is made of with 4~12 fibers, aramid yarn and LSZH jacket. This kind of cable has very good mechanical characterisstics, small outside diameter, high strength, saving space, easy wiring and follow-up processing, is a good transmission mediulm in the field of communication. The products are widely used in broadcasting and television system, building intelligent control, poower control system, traffic communication system and local area network.

產品特點Features

◆鎧裝保護，具有優良的機械性能；

Protected by flexible armored SUS tube, which have very good mechanical performances.

◆微小外徑，節約布線空間，易于施工；

Small diameter, save space and easy to deploy;

◆阻燃PVC/LSZH/PE等外護套可選，符合UL，RoHS等；

Outer jacket complies with UL,RoHS;

◆12芯子纜和24芯子纜可選；

12 cores or 24 cores is option for the subcable in order to complied with MTP or MPO;

推薦用途Application

◆加工鎧裝多芯跳線、尾纜；

Process to multi-cores armored patch cord;

◆室內外沿墻、頂、夾層和導管連接的直接布放光纜；

Cabling on wall,ceil,tube,case,etc;
