礦用柔性防爆阻燃通信光纜
FLAME RETARDANT AND EXPLOSION PREVENTION FLEXIBLE COMMUNICATION OPTICAL FIBER CABLE FOR MINING
一、產品描述DISCRIPTION

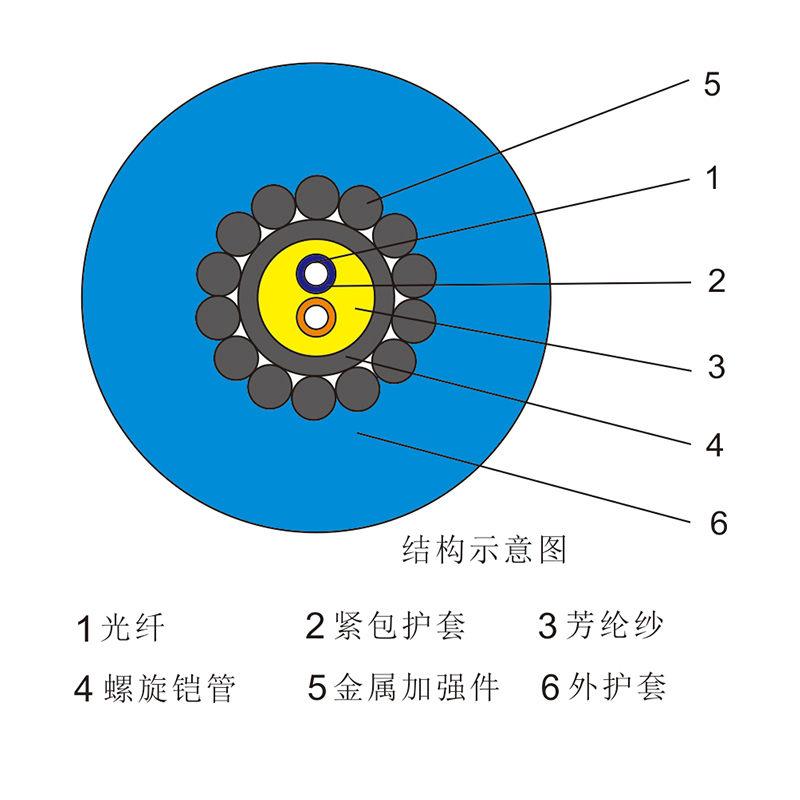

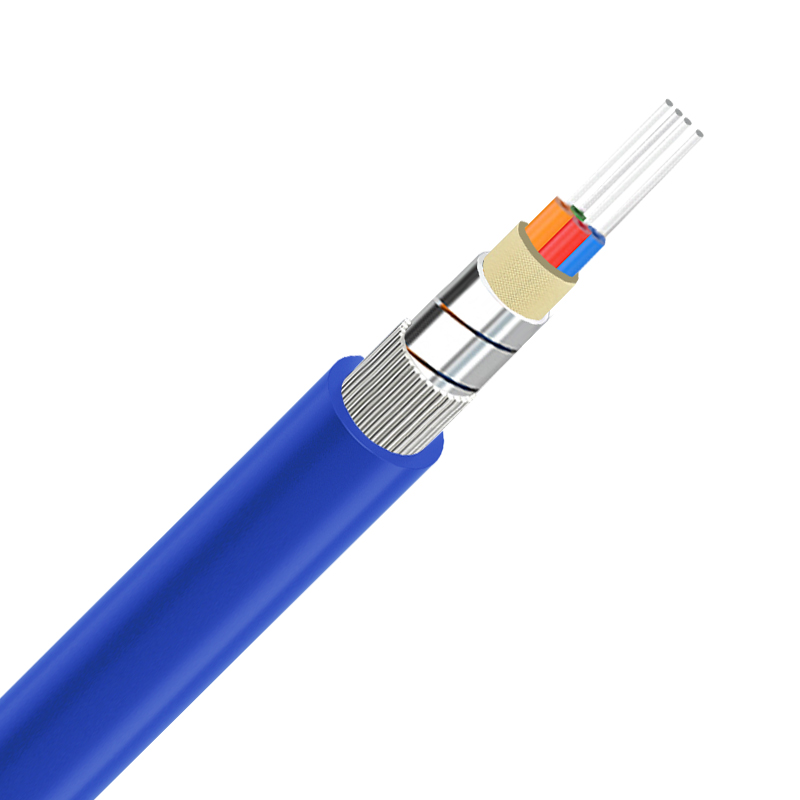

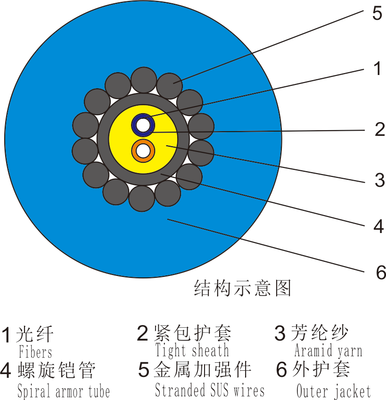

礦用柔性防爆阻燃通信光纜是一種專門為煤礦、金礦等易燃易爆場合檢測環境安全應用的信號傳輸光纜。光纜采用尼龍緊套、螺旋鎧裝包護、絞合不銹鋼絲加強及高阻燃護套組成。由于采用了抗張強度很強的絞合鋼絲加強,使其具有非常強的抗拉、抗壓和抗爆性能,能適應礦井復雜的環境,抵抗落石、塌方等惡性事故造成的傷害,確保正常工作傳輸。
THE FLEXIBALE COMMUNICATION OPTICAL FIBER CABLE IS DESIGNED FOR TRANSPORTATION OF SIGNAL TO TEST ENVIRONMENT SAFETY .optical fiber was tight buffered by Nylon material , and armored by spiral steel belt with stranded steel wire and high flame retardant sheath. With high tensile strength strand steel wire as strength member , the cable with good performance of anti strong tensile,anti crush and explosion prevent.Also the cable can adopt to complex environment ,and be safe from the hurt of rock slide ,landslide .This will make sure the normal work of signal transportation.
二、產品特點FEATURES
1、產品具有煤安認證,適合井下使用
With mining safety certificate ,suitable for underground
2、外徑小,結構簡單,方便施工
Small out dimension simple structure, easy installation
3、柔性螺旋鎧管+鋼絲絞合雙層保護,機械性能優越
Flexible spiral steel belt+stranded steel wire double protect,with good mechanical performance
三、推薦用途APPLICATION
煤礦、金礦等
Coal mine ,gold mine

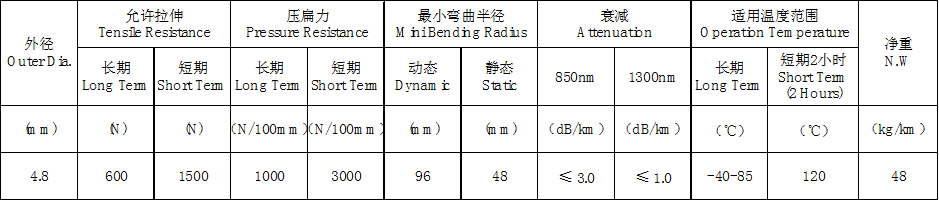

四、主要參數MAIN PARAMETERS
