全介質電力測溫光纜

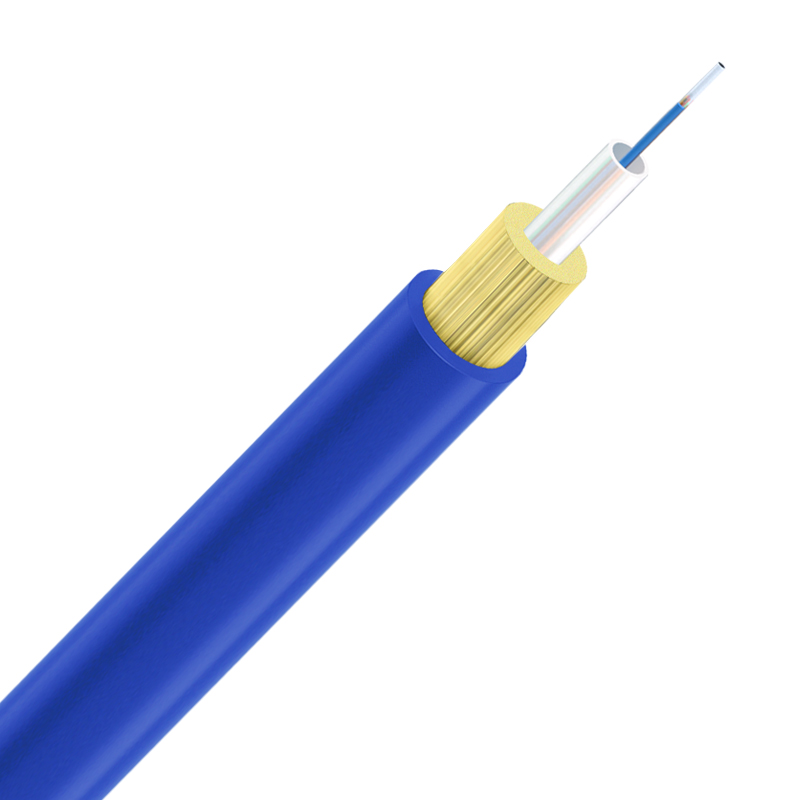

Nonmetal Loose Tube Temperature Sensor Cable
產品描述Description
非金屬充油管型測溫光纜是專為具有強電場、強磁場的測溫環境使用而設計的一種傳感光纜。光纜采用全非金屬的中心束管式結構，由PBT充油束管、凱夫拉和外護套組成，簡潔而實用。這種光纜具有優良的光學性能、高防水、無金屬介質等優點，非常適合用于具有強電場、強磁場干擾的DTS測溫場合，是電力系統測溫專用的探測光纜，也適用其他的測溫場合。

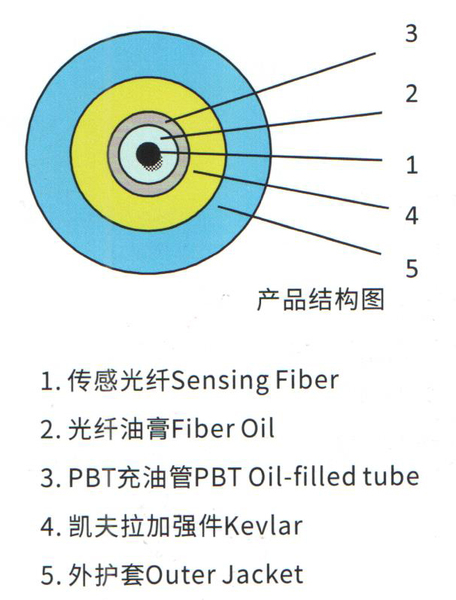

Nonmetal Oil Filling Pipe Temperature Sensing FO Cable is designed for temperature detecting of the special environment with strong electric field and magnetic field. And it adopts nolnmetal central bundle structure, and it is composed by PBT oil filling bundle pipe, Kevlar strengthening member and outer jacket. Because this kind of cable has many advantages such as good optimal performance, highly water resistance, and nonmetal medium, it is widely used in fire detecting, building health detecting, DTS temperature detecting with strong electric field and magnetic field,etc.
產品特點Features◆全非金屬結構，適合強電場、強磁場環境
Nonmetal Structure,adapt to the environment of strong EF&MF;
◆高強度PBT管保護，具有很好的機械性能
Good waterproof, tensile resistance & pressure resistance performances;
◆低損耗，良好的光纖傳輸性能
Low attenuation and excellent transmission performance;
◆阻燃外護套，良好的電氣絕緣性能
Flame retardant sheath, good electrical insulation properties;
推薦用途Application◆電纜溝槽，電纜夾層，電纜遂道等
Power wire tunnel,power wire interlayer temperature detecting;
◆高速公路、地鐵等隧道
High-way's tunnel, underground tunnel fire detecting
◆工廠、會館、糧倉等大型建筑消防測溫
Fire monitoring of factory,hall,granary,etc;

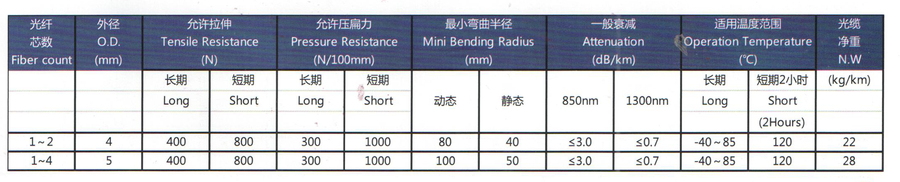

主要參數Main Parameters
