耐高溫型鎧裝測溫光纜
Heat Resisting Armored DTS Sensor Cable
產品描述 Description
耐高溫型鎧裝測溫光纜是由螺旋不銹鋼軟管內置1～2芯傳感光纖，軟管外加高模量凱夫拉、不銹鋼編織網及鐵氟龍外護套組成。由于采用了鐵弗龍（四氟乙烯）這種特殊材料，克服了傳統螺旋鋼管鎧裝型傳感光纜高低溫范圍狹窄的缺點，使其長期使用溫度擴展到-60℃～150℃，***高溫度可以達到200℃。此外，鐵弗龍材料獨特的導熱快、絕緣電阻高、耐磨、耐化學腐蝕、不親水、不親油、硬度適中等特點，使光纜的適用領域得到極大的擴展。目前產品廣泛應用于電力、石化等測溫領域。

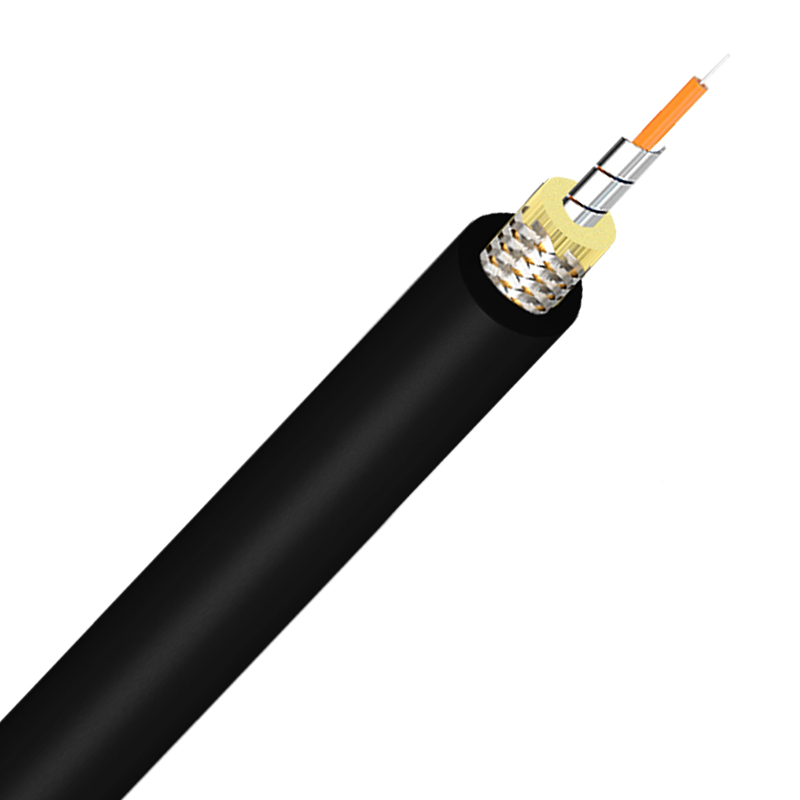

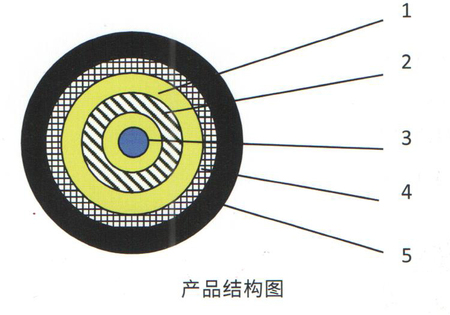

Heat Resisting Armored Temperature Sensor Cable is compossed by the built-in 1~2 core sensing cable of the spiral stainless steel soft pipe, Kevlar strengthening member, stainless steel braiding, and PTFE outer jacket which could overcome the deficiency of the narrow temperature range of the traditional soiral tube armored sensing cable to-60℃～150℃, even 200℃.In addition, because of many advantages such as quick thermal conductivity, high insulated resistance, hard-wearing, chemical resistance, non-hydrophilic, non-oleophylic, and middle rigidity, the PTFE material largely expands the application of cable. This kind of cable is widely used in the temperature sensing domains such as electric power and petrifaction.
產品特點Features◆使用溫度范圍非常廣∶-60℃～150℃，***高可達200℃；
Very wide temperature range,-60℃～150℃, even 200℃;
◆絕緣電阻高，根據外護套厚度，***高可達10KV/mm絕緣比
High insulated resistance to 10KV/mm according to certain depth of the outer jacket;
◆耐磨擦、耐腐蝕、不親水、不親油，可在強化學環境中長期使用
Attrition resistance, corrosion resistance, non-hydrophilic, non-oleophylic, using forlong term in the strong chemical environment;
◆高機械強度，抗壓扁能力達4000N/10CM，抗拉達400N；
High mechanical strengthen, anti-pressing to 4000N/10CM, and anti-dragging to 400N;
推薦用途Application
◆長期高溫、高濕的環境5
Environment with high temperature for long time;
◆儲煤場、糧倉、?；穫}(cāng)庫1.凱夫拉Kevlar
Coal storage yard,granary,hazardous chemical warehouse;
◆鋼廠高爐、熱力管道、石化管道等；
Blast furnace,heat pipe,petrochemicalpipe and so on;

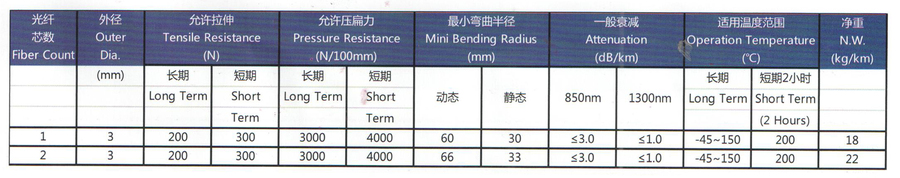

主要參數Main Parameters
