礦用阻燃通信光纜
Flame Retardant Communication Cable for Mine
產品描述Description

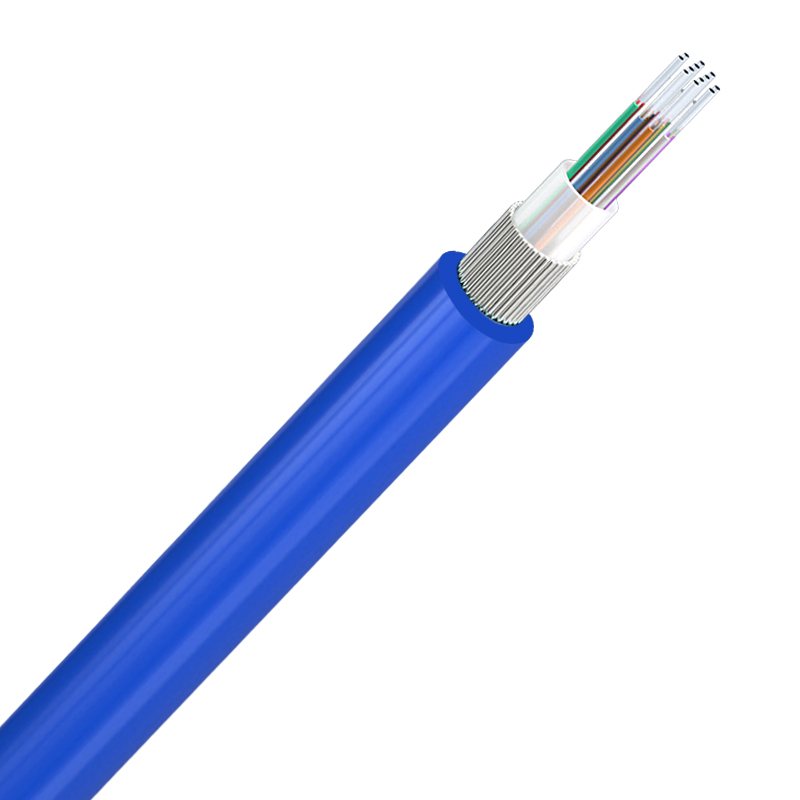

礦用阻燃通信光纜是一種專門為煤礦、金屬礦等易燃易暴場合監測環境安全應用的傳感光纜。光纜采用PBT松套管（或不銹鋼管）、絞合不銹鋼絲加強及高阻燃護套組成。由于采用了抗張強度很強的絞合鋼絲加強，使其具有非常強的抗拉、抗壓和抗爆性能，能適應礦井下復雜的環境，抵抗落石、塌方等惡性事故造成的傷害，確保傳感器正常工作。
Mine Flame Retardant Communication Fiber Optic Cable is a kind of sensor cable which is specially used to monitor environmental safety in inflammable and explosive occasions such as coal mine and metal mine. The cable is made of PBT loose tube or stainless steel pipe, stranded stainless steel wire and flame retardant sheath. Due to the use of high strength seamless steel wire, so that it has a very strong tensile, compressive and anti-explosion performance, can adapt to the complex environment in the mine, resist the fall of rocks, collapse and other malignant accidents caused by the injury, to ensure the normal work of the sensor.
產品特點Features◆產品具有煤安認證，適合井下使用
Complied with coal safety certification, suitable for underground application;
◆外徑小，結構簡單，熱滲透快，測溫響應快
Small diameter, fast thermal penetration, quick temperature response;

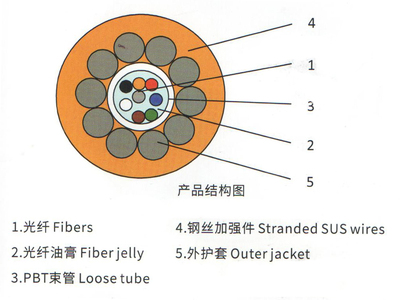

◆鋼絲絞合保護+PBT束管雙層保護，機械性能優越。
Stranded steel wires protection, superior mechanical properties
推薦用途Application
◆煤礦、金屬礦等。
Coal mine, metal mine, etc.

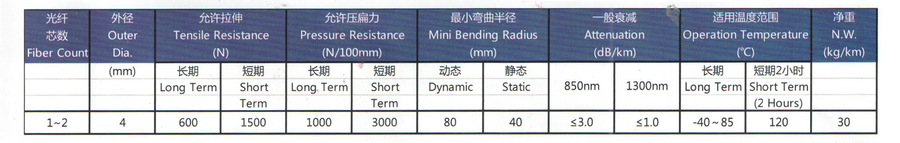

主要參數Main Parameters
