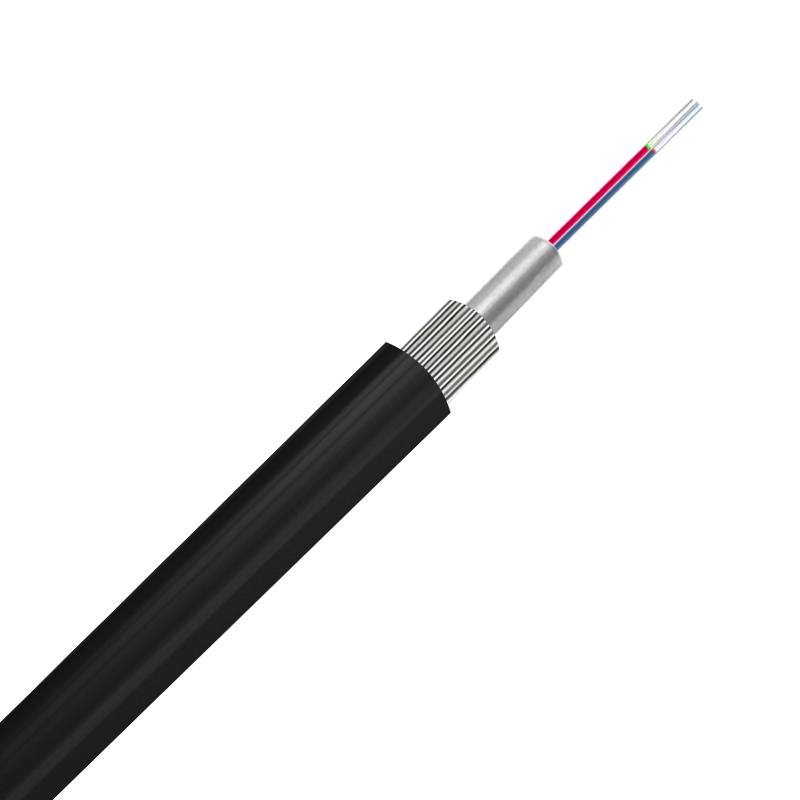

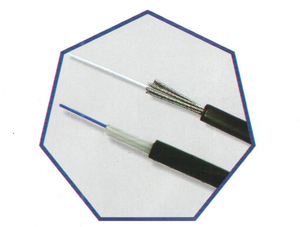

鎧裝應變傳感光纜
Armored Strain Sensing Cable
產品描述 Description
鎧裝應力傳感光纜是一種專業BOTDR和BOTDA原理研究的一種應力、應變傳感光纜，光纜由中芯的緊包型應力傳感光纖，外層絞鋼絲或FRP加強件和MDPE護套組成。光纖與加強件、外護套緊密接觸，可以實時地感應到外部的應力變化。獨特的FRP層絞結構設計，巧妙地將光纜的縱向拉力轉化為橫向的應力，并且做到應力分布均勻，同時讓光纖具有較強的機模性能，***大程度地平衡了光纜布線時一定的機械強度要求和光纖應力傳感之間的矛盾。產品特別適用于埋地、嵌入、預埋等方式布線，在大型建筑建康情況監測、地質沉降、管道變形等監測上有廣泛的應用。

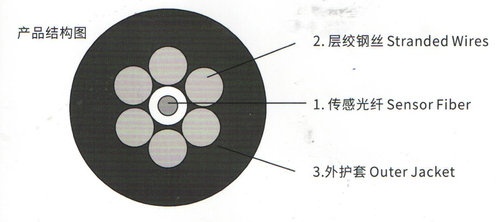

Armored Strain Sensing Cable is a kind of sensing optical cablle which is base on professional BOTDR and BOTDA principle. The optical cable is composed of optical fiber as middle core, stranded steel wire and MDPE jacket.The fiber is in close contact with the stiffener and outer sheath, which can sense the external strain change in real time.The unique steel wires layer twisted structure design skillfully transforms the longitudinal tension cof optical cable into transverse stress, and achieves the uniform stress distribution. Meanwhile, the fiber has strong mechanicalperformance, balancing the contradiction between the certain mechanical strength requirement and the fiber stress sensing to the greatest extent.The products are especially suitable for buried,embedded,embedded and other ways of wiring,application in building health monitoring, geological settlement, pipe deformation monitoring.
產品特點Features◆結構簡單，能滿足光纜布線需求和應力監測需求
simple structure, can satisfy the need of wiring requirements and stress monitoring;
◆鋼索鎧裝，熱脹冷縮率小，***大程度地減少溫度對光纖造成的影響；
wire armored, small heat bilges cold shrink rate, minimize the effects of temperature on the optical fiber；
推薦用途Application
◆適合固定于鋼結構上、混凝土直埋、埋地等應用
suitable for fixed on the steel structure, concrete directly buried, buried application

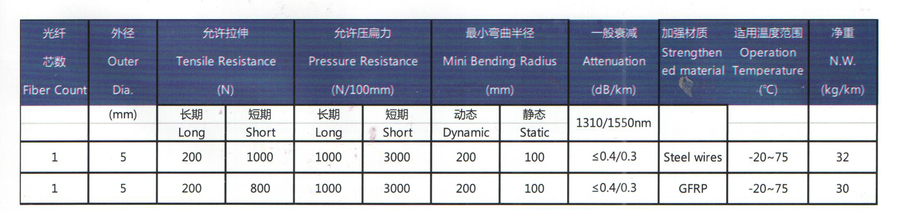

主要參數Main Parameters
